Fishing Gear

« | Net Clearer | Piccolo Hauler | Maxihauler 3 | Maxihauler 5 | Maxihauler 7 | »

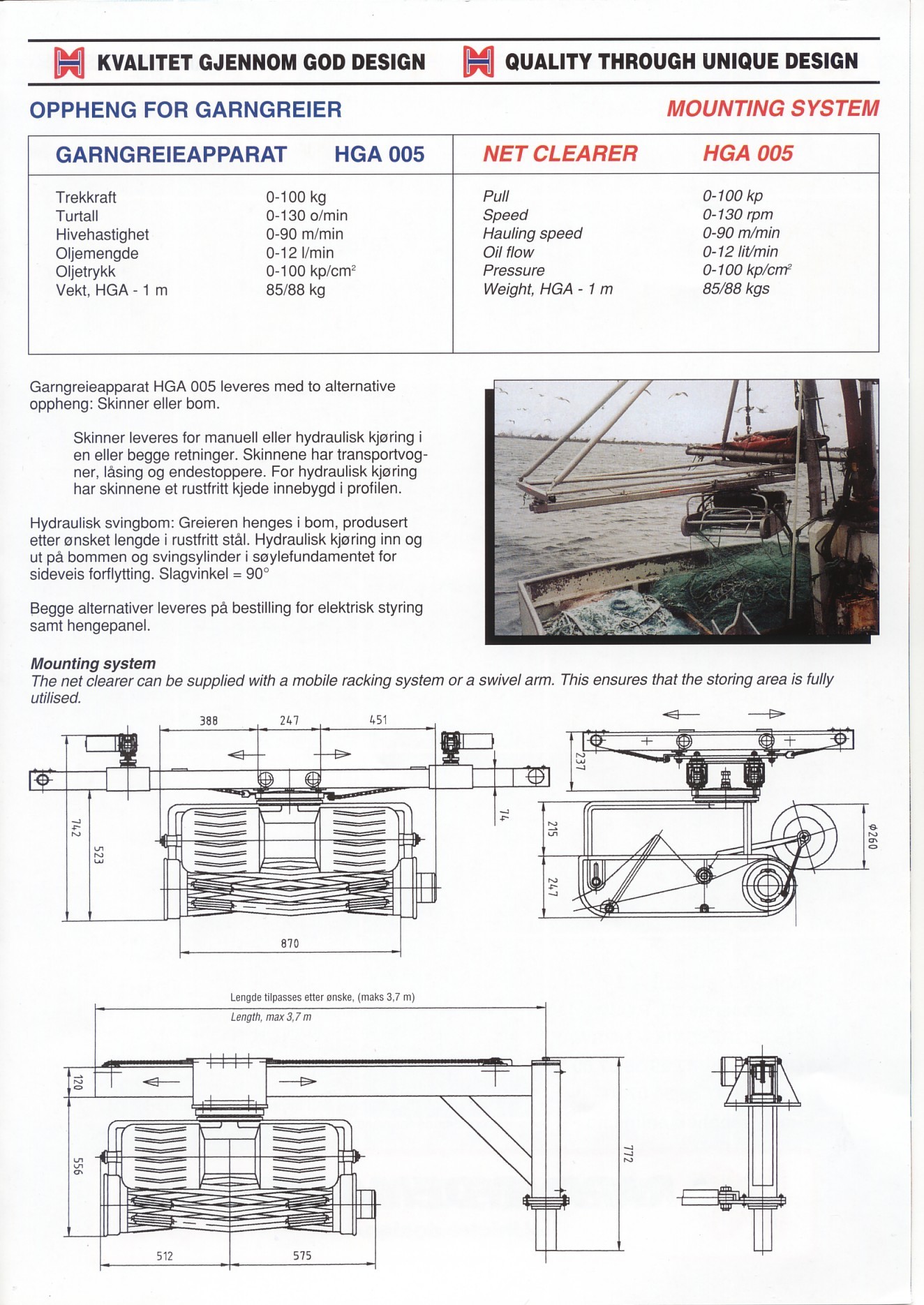

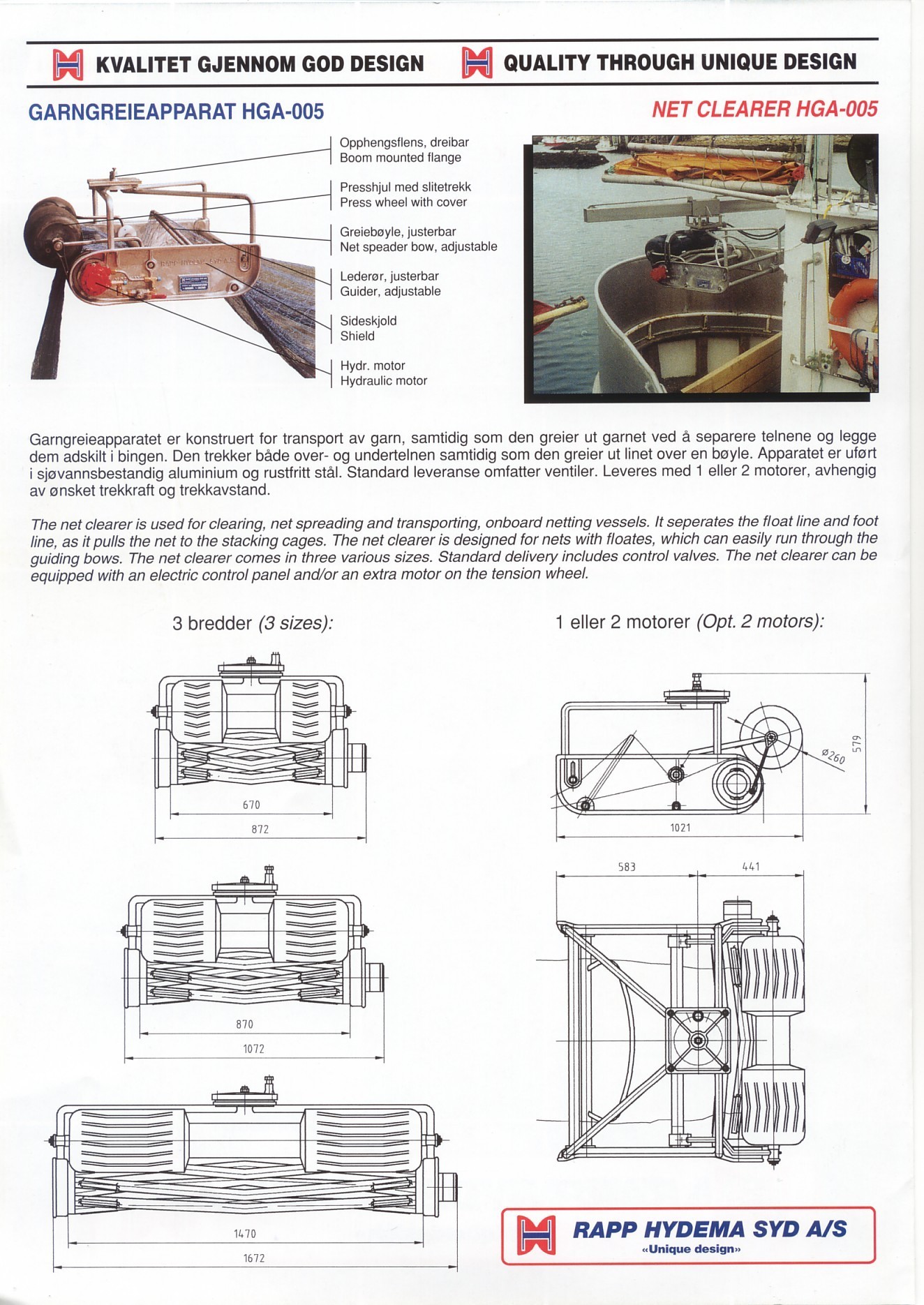

Net Clearer HGA-005

The net clearer is used for clearing, net spreading and transporting, onboard netting vessels. It separates the float line and foot line as it pulls the net to the stacking cages. The net clearer is designed for nets with floats which can easily run through the guiding bows. The net clearer comes in three different sizes. Standard delivery includes control valves. The net clearer can be equipped with and electric control panel and/or an extra motor on the tension wheel.

Click here to download and display information sheet 1 (521 kb) and information sheet 2 (491kb).

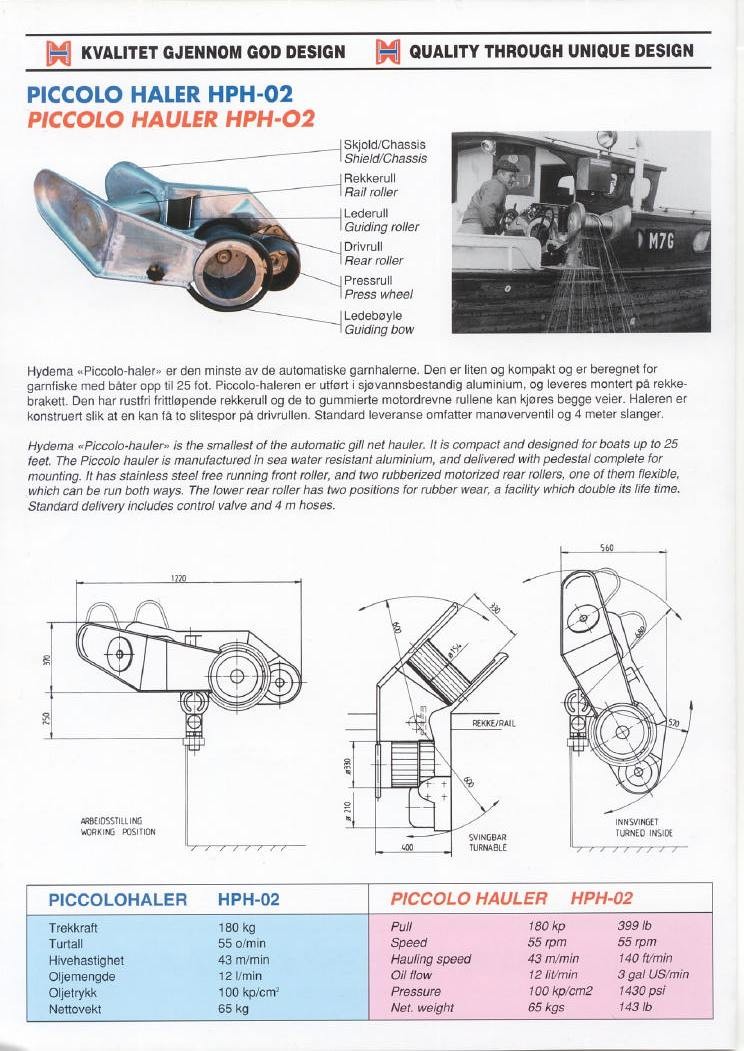

Piccolo Hauler HPH-02

The Hydema Piccolo hauler is the smallest of the automatic gill net haulers. It is compact and designed for boats up to 25 feet. The Piccolo hauler is manufactured in sea water resistant aluminium and delivered with pedestal, ready for mounting. It has stainless steel free running front roller and two rubberised motorised rear rollers - one of them flexible which can be run both ways. The lower rear roller has two positions for rubber wear, a facility which doubles its' lifetime. Standard delivery includes control valve and 4m hoses.

Click here to download and display information sheet (182 kb).

Pull: 180kg
Hauling speed: 43 M/min
Oil: 12 L/min, 100 kp/cm²
Weight: 65 kg

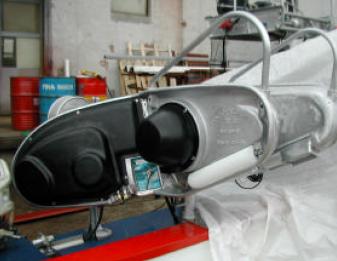

Maxihauler HMH-03

Click here to download and display information sheet (998 kb).

Pull: 300kg
Hauling speed: 42 M/min
Oil: 12 L/min, 140 kp/cm²
Weight: 125 kg

Maxihauler HMH-05

Click here to download and display information sheet (1035 kb).

Pull: 500kg
Hauling speed: 30 M/min
Oil: 22 L/min, 150 kp/cm²
Weight: 160 kg

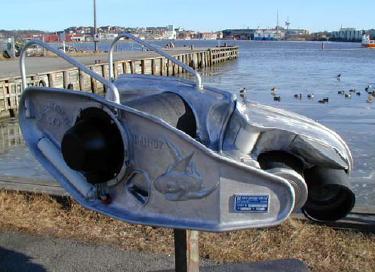

Maxihauler HMH-07

Click here to download and display information sheet (320 kb).

Pull: 700kg
Hauling speed: 43/83 M/min
Oil: 40 L/min, 160 kp/cm²
Weight: 160 kg
